Revolutionary Breakthrough in Titanium Plate Pressing with Steel Wire Wound Hydraulic Press

Titanium plates, known for their high strength, corrosion resistance, and lightweight properties, are widely used in aerospace, automotive, medical, and chemical engineering industries. However, the pressing and forming of titanium plates have always been challenging due to their low plasticity and high density. Traditional pressing methods often struggle with precise process control, leading to unsatisfactory product quality and process stability. The steel wire wound hydraulic press, as a new type of hydraulic pressing technology, represents a revolutionary solution to these manufacturing challenges. This article delves into the working principles, technical advantages, application fields, and future development directions of the steel wire wound titanium plate hydraulic press, illustrating its exceptional capabilities in precision manufacturing.

Historical Background and Development

The concept of reinforcing structures using winding methods dates back to the 17th century, where it was applied to reinforce gun barrels. The预应力steel wire winding technology, however, emerged in the 1930s, proposed by Bactzar von Platen to apply high-strength steel wires to wrap around hydraulic press frames to impart prestress. In 1939, the Swedish company ASEA pioneered the application of this technology on the world's first 132MN synthetic diamond hydraulic press, marking significant advancements. ASEA's Quintus research department further adopted the steel wire winding structure, producing various hydraulic presses for cold forging, sheet metal forming, deep drawing, hydrostatic extrusion, powder forming, cold and hot isostatic pressing, and synthetic diamond processes.

After the 1960s, the Soviet Union adopted this technology to develop a range of hydraulic presses, including 10MN to 150MN die-forging presses, 60MN to 160MN synthetic diamond presses, and 20MN to 120MN hot and cold isostatic presses, all achieving remarkable results. In the 1970s, China initiated research on prestressed steel wire winding technology, developing the country's first 15MN hot isostatic press and 200MN rubber bladder sheet metal forming press.

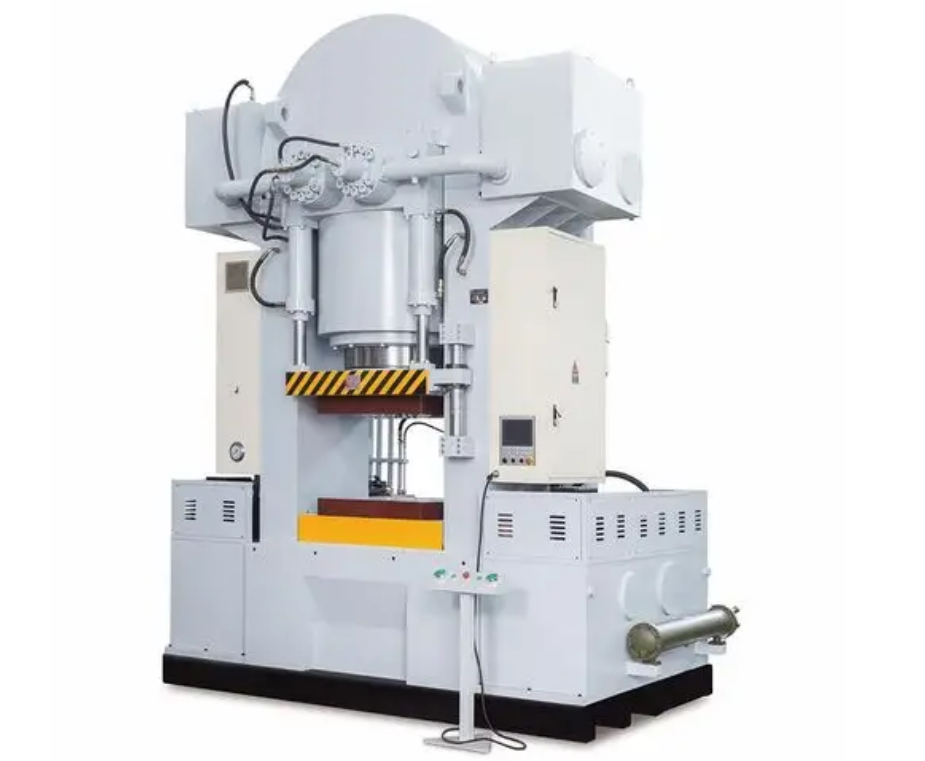

The Core Innovation: Steel Wire Wound Hydraulic Press

The steel wire wound titanium plate hydraulic press combines steel wire winding technology with traditional hydraulic technology, providing a more precise pressure control method. This technology enables the hydraulic press to deliver uniform pressure distribution during titanium plate processing, avoiding issues such as uneven pressure and localized excessive deformation associated with traditional hydraulic presses.

The hydraulic system is the foundation of the steel wire wound titanium plate hydraulic press. The hydraulic pump transfers pressure through liquid, uniformly applying the pressing force to the workbench and titanium plate material. The steel wire winding system, through the rational arrangement of individual steel wires, forms a uniform pressure distribution within the hydraulic press. This winding system effectively extends the pressure of the hydraulic system to the entire pressing area and precisely controls the pressure distribution by adjusting the tension of the steel wires.

Technical Advantages and Applications

Uniform Pressure Distribution

The steel wire wound hydraulic press ensures more uniform and stable pressure distribution during the pressing process, which is particularly important for low-plasticity, loosely structured materials like titanium. Uniform pressure distribution helps reduce cracks, porosity, and surface defects in the material during pressing.

Lower Temperature and Pressure Requirements

The steel wire wound hydraulic press allows titanium to undergo complex forming processes at lower temperatures and pressures. This enhances titanium's plastic deformation capability and significantly reduces energy consumption and material waste during the forming process.

High Precision and Reliability

The steel wire wound hydraulic press offers more precise control, making the titanium pressing process more reliable. Compared to traditional hydraulic presses, it effectively reduces the scrap rate during deformation, ensuring dimensional accuracy, surface quality, and mechanical properties of the finished product, especially in high-precision fields such as aerospace component manufacturing.

Energy Efficiency

The steel wire wound hydraulic press completes pressing tasks at lower pressures and temperatures, resulting in significantly lower energy consumption compared to traditional hydraulic presses. More efficient pressure distribution and control mechanisms make the entire production process more energy-efficient and cost-effective.

Application Fields

Aerospace Industry

Titanium alloy materials are widely used in the manufacturing of high-end equipment such as airplanes, rockets, and satellites. Due to titanium sponge's excellent corrosion resistance, light weight, and high strength, the steel wire wound hydraulic press ensures precise manufacturing of complex structural components, meeting the requirements for high strength, low weight, and high reliability.

Automotive Industry

With the increasing demand for automotive lightweighting and energy-saving and environmental protection, titanium sponge's application in the automotive sector is gradually increasing. The steel wire wound hydraulic press can efficiently and precisely process titanium alloy components, enhancing automotive component performance, reducing vehicle weight, and improving fuel efficiency and safety.

Medical Industry

Titanium alloy is widely used in medical devices due to its biocompatibility and corrosion resistance, such as artificial joints and bone pins. The steel wire wound hydraulic press can precisely process these complex shapes of medical devices, ensuring surface finish and dimensional accuracy, thereby guaranteeing patient safety and comfort.

Chemical Engineering and Energy Fields

Titanium alloy is widely used in corrosion protection applications in chemical engineering and energy fields. The steel wire wound hydraulic press can efficiently process titanium sheets and tubes, providing reliable corrosion protection materials for petrochemical equipment and nuclear power plant equipment.

Future Development Directions

With the continuous improvement in manufacturing requirements for precision and efficiency, the technology of the steel wire wound hydraulic press will continue to develop and improve. In the future, the combination of steel wire winding technology and hydraulic technology will become more intelligent and automated, adapting to the needs of more high-end manufacturing.

The emergence of the steel wire wound titanium plate hydraulic press marks a technological innovation in the field of precision manufacturing. It provides an efficient, stable, and high-quality solution for titanium processing through precise pressure control and uniform mechanical transmission. With technological advancements, the steel wire wound hydraulic press will further promote the development of processing technologies for titanium and other high-performance metal materials, driving innovation and progress in aerospace, automotive, medical, and other industries.

In conclusion, the steel wire wound titanium plate hydraulic press represents a significant leap forward in titanium plate pressing technology. Its innovative design and precise control capabilities make it an indispensable tool in the manufacturing of high-precision and high-quality products across various industries. As technology continues to evolve, the steel wire wound hydraulic press will undoubtedly play an increasingly important role in driving the progress of manufacturing.
